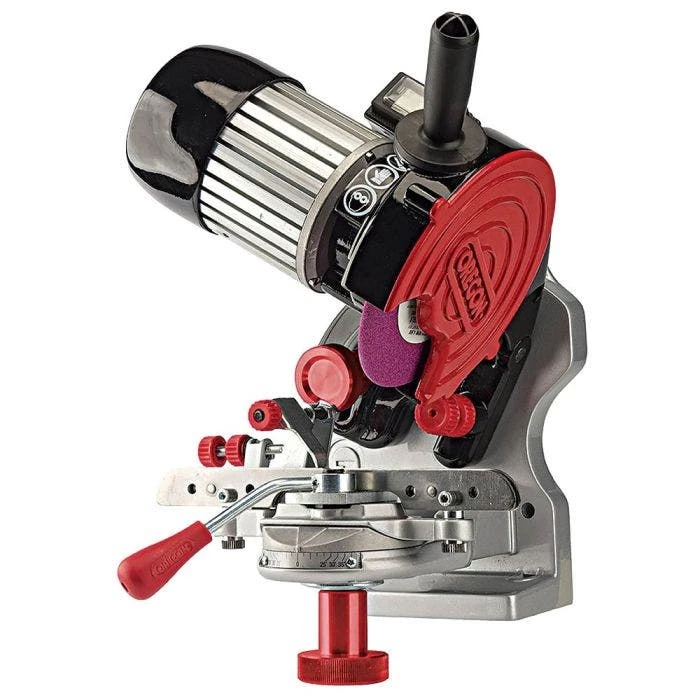

Oregon quality you can trust at an exceptional value. The 410 Series, Standard saw chain bench grinder sharpens up to 0.404″ pitch chain. A single phase, direct-drive 120V motor (220 Amp, 220 Watt) delivers 0.29HP and 3150RPM. The one-way motor rotation allows for safe operation. A manual chain-clamping device assists in grinding/ sharpening a wide variety of common chain saw chains. Out of the box the 410 Series Grinder is ready to maintenance 1/4″, 3/8″ Low Profile, 0.325″, 3/8″ and 0.404″ pitch saw chain. The base offers work bench or wall mounting options (mounting hardware not included). A built-in work light and intuitive adjustments make this standard saw chain grinder easy to use. The 410-120 Includes a dressing brick for shaping grinding wheels, a quick template, and three high-quality Oregon 5-3/4″ diameter grinding wheels: 1/8″, 3/16″, and 1/4″ thickness. Ship wt. 18lb.
Product Specs
Wheel Size: 5-3/4″
Max chain pitch: 0.404″
Motor: Direct Drive
Operation: One-way
Phase: Single
Volts: 120V-AC
Hertz: 60
Amps: 2.1
Watts: 220
RPM: 3150
Horsepower: 0.29
Max chain pitch: 0.404″
Motor: Direct Drive
Operation: One-way
Phase: Single
Volts: 120V-AC
Hertz: 60
Amps: 2.1
Watts: 220
RPM: 3150
Horsepower: 0.29
Product Warranty Information

- This product is covered under A.M. Leonard’s exclusive 30-Day Down to Earth Guarantee. Click Here for more Details.
Product Features
Base is predrilled for either wall or bench mounting (mounting hardware not included)
Top plate angle settings
Down angle settings
Self-Centering Chain Vice
Built in work light
Included Accessories: Dressing Brick, Quick Template, and three/ 5-3/4″ diameter grinding wheels – 1/8″, 3/16″, and 1/4″ thickness
Ship wt. 17.8lb.
Oregon quality you can trust at an exceptional value
One-way motor operation ensures safe operation
Intuitive, easy-to-use adjustments
A manual chain-clamping device assists in grinding/ sharpening a wide variety of common chain saw chains
Out of the box the 410 Series Grinder is ready to maintenance 1/4″, 3/8″ Low Profile, 0.325″, 3/8″ and 0.404″ pitch saw chain
Top plate angle settings
Down angle settings
Self-Centering Chain Vice
Built in work light
Included Accessories: Dressing Brick, Quick Template, and three/ 5-3/4″ diameter grinding wheels – 1/8″, 3/16″, and 1/4″ thickness
Ship wt. 17.8lb.
Oregon quality you can trust at an exceptional value
One-way motor operation ensures safe operation
Intuitive, easy-to-use adjustments
A manual chain-clamping device assists in grinding/ sharpening a wide variety of common chain saw chains
Out of the box the 410 Series Grinder is ready to maintenance 1/4″, 3/8″ Low Profile, 0.325″, 3/8″ and 0.404″ pitch saw chain
